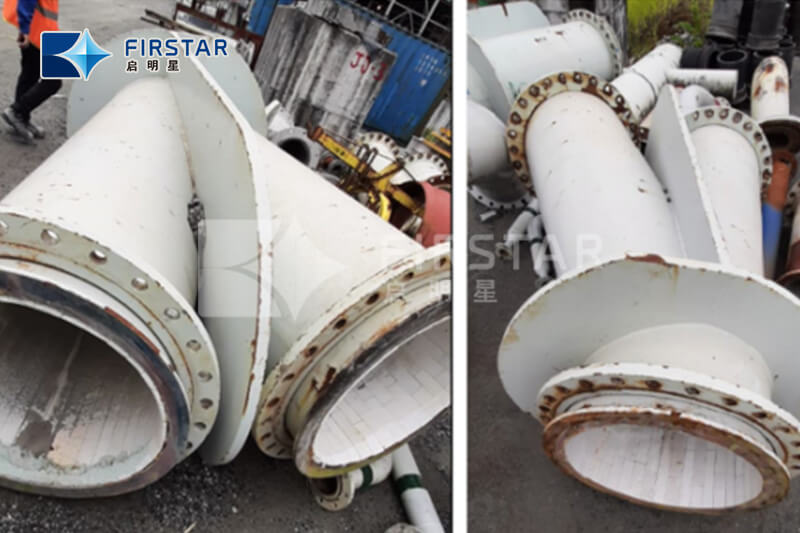

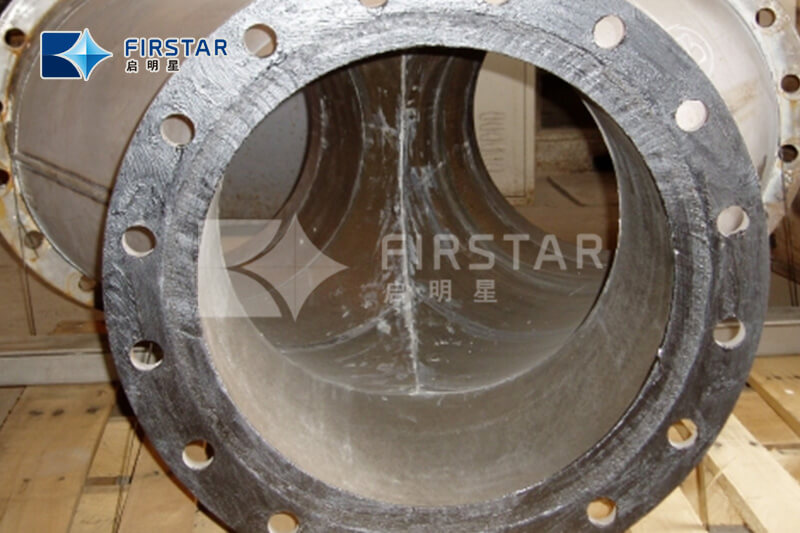

Tubos y tees de alimentación en Y revestidos de cerámica
Product Overview
Tubería en Y y tubería en T:
Las tuberías en Y son similares a las tuberías en T. La única diferencia es que el ramal está inclinado para reducir la fricción que podría obstaculizar el flujo. La conexión de la tubería suele estar en un ángulo de 45 grados en lugar del ángulo habitual de 90 grados. Si al final una rama resulta ser perpendicular a la línea de paso, el accesorio de tubería se convierte en una "T en estrella".
Principales Propiedades de la Cerámica
| Categoría | HC92 | HC95 | HCT95 |
| Al2O3 | ≥92% | ≥95% | ≥95% |
| ZrO2 | / | / | / |
| Densidad | ≥3.60g/cm3 | ≥3.65g/cm3 | ≥3.70g/cm3 |
| Absorción de agua | ≤0.1% | ≤0.1% | ≤0.1% |
| HV 20 | ≥950 | ≥1000 | ≥1100 |
| Dureza de roca HRA | ≥82 | ≥85 | ≥88 |
| Resistencia a la flexión MPa | ≥220 | ≥250 | ≥300 |
| Resistencia a la compresión MPa | ≥1050 | ≥1300 | ≥1600 |
| Resistencia a la fractura KIc MPam 1/2 | ≥3.7 | ≥3.8 | ≥4.0 |
| Volumen de uso | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 |
Solicitud:
Los codos de tubería revestidos de cerámica también se pueden aplicar en las partes de la bomba de concreto debido a sus ventajas, especialmente el bajo peso, que ayuda a evitar el atasco durante el transporte del concreto.
Reemplazo de tubería de acero al carbono, tubería de acero inoxidable y SDR
Descarga de material de alto desgaste
Líneas de alimentación y drenaje de magnetita
Desbordamiento de relaves
