Ceramic Ball mill lining 95% Zirconia Brick
Product Overview
95% zirconia lining bricks are a type of ceramic brick used in industrial applications such as ball mills, attritors, and vibro-energy grinding mills. These bricks are made of a high-purity zirconium oxide (ZrO2) material with a zirconia content of at least 95%.
Zirconia lining bricks offer excellent wear resistance and are able to withstand high temperatures, making them ideal for use in harsh industrial environments. They are commonly used in the mining, chemical, and pharmaceutical industries, where grinding and milling of materials is a critical part of the production process.
In addition to their excellent wear resistance and thermal stability, zirconia lining bricks also offer good corrosion resistance and are chemically inert, making them suitable for use with a wide range of chemicals and materials.
Overall, 95% zirconia lining bricks are a high-performance material that can improve the efficiency and longevity of industrial grinding equipment, leading to cost savings and increased productivity.
Technical Data:
| ZIRCONIA LINING BRICK | ||
| ITEMS | Typical Values | |
| Composition | Wt% | 94.8% ZrO2 |
| 5.2% Y2O3 | ||
| Density | g/cm3 | ≥6 |
| Hardness (HV20) | GPa | ≥11 |
| Bending Strength | MPa | ≥800 |
| Fracture Toughness | MPa.m1/2 | ≥7 |
| Rock Hardness | HRA | ≥88 |
| Wear Rate | cm3 | ≤0.05 |
| Specification | Customized | |

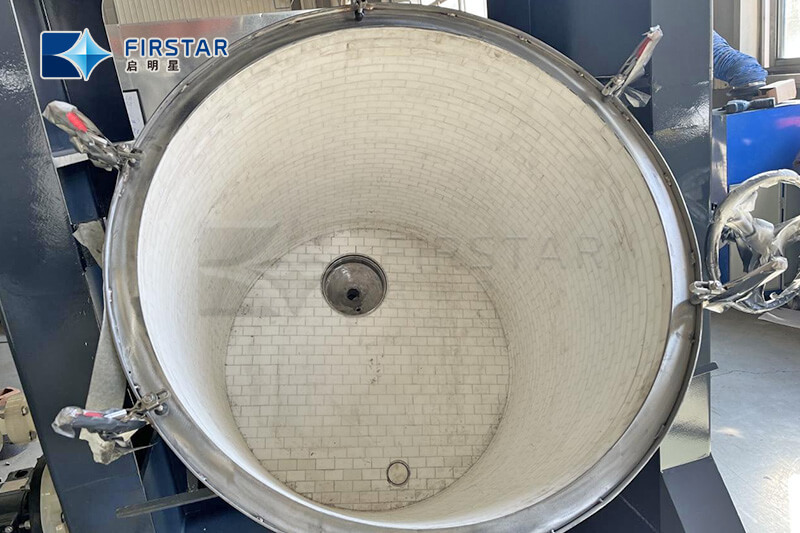

Project Case
STRICT INTERNATIONAL STANDARD (ISO) CERTIFICATION
Established a global quality management and environmental management system.
Passed the international standard certification established by the International Organization for Standardization (ISO). After a strict and systematic international review process, it is proved that the products and services provided to customers are strictly maintained.
ISO 9001 International Standard For Quality Management
Our Quality Management System is managed to consistently meet the needs of our customers with the highest global quality.
ISO14001 Environmental Management System Certification
Establish a world-class green management system to minimize harmful environmental factors and demonstrate that the energy, resource consumption and regeneration of our products are effectively managed.
ISO 45001 Occupational Health and Safety Management System Certification
ISO 45001 Occupational Health and Safety Management System evolved from OHSAS18001 Occupational Health and Safety Management System. This new standard is designed to help organizations around the world ensure the health and safety of their workers.
Applications
Mining & Metallurgy
Wear ceramic linings safeguard chutes, cyclones and pipelines during ore conveying and metallurgical material handling.
Cement & Building Materials
Ceramic wear liners for clinker transfer pipelines and powder processing equipment in cement and construction material plants.
Power & Energy Generation
Applied in coal mills, ash conveying pipelines and desulfurization systems of thermal power plants against abrasion.
Chemical & Coatings Industry
Abrasion & corrosion resistant ceramic linings for slurry transport and mixing equipment in pigment and chemical production.
Ceramics & Glass Manufacturing
High-performance ceramic wear parts for raw material conveying systems of ceramics and glass production lines.
New Energy & Lithium Battery
Low-contamination alumina ceramic liners for lithium powder conveying equipment in lithium battery raw material processing.
Product Advantages
High Hardness & Wear Resistance
Vickers hardness ≥ 1100 HV, offering significantly lower wear loss compared to traditional steel balls.
Cost-Effective Solution
Longer service life means fewer replacements and reduced downtime for your production lines.
Low Abrasion & Contamination
Minimal material wear ensures product purity and prevents contamination during grinding processes.
Precision Manufacturing
Advanced isostatic pressing technology ensures uniform density and consistent quality in every ball.
Custom Sizes Available
We produce balls from Ø 1mm to Ø 100mm, with custom sizes available to meet your specific requirements.
Global Shipping & Support
Fast worldwide shipping with professional technical support from our engineering team.
